Ev21 Series

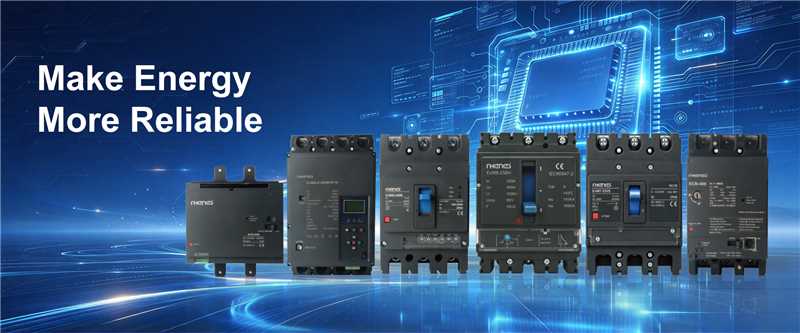

Moulded Case Circuit Breaker

List price:0.00

Price:0.00

Application Integrated with international Hi-tech, Ev21 series moulded case circuit breaker is a new type of circuit breaker which designed by our company. lt's compact, modularized, with high breaking capacity, zero-arc, completely environment friendly. Ev21 circuit breaker mainly applies to distribution systems with 50/60Hz, rated voltage up to 690V, rated current 12.5~1600A, its purposelays in power distributing & protecting system against malfunctions such as overload, short-circuit, undervoltage, etc. it can also work as an infrequent ON/OFF switch under systems working innormal condition.Ev21 circuit breaker equips with intelligent controller as well, which not only makes its current adjustable but also grants protection against overload(long delay), short-circuit(short delay), short-circuit(instantaneous) & undervoltage. it'II certainly improve the entire power system's reliability,continuity & security. Ev21 circuit breaker also obtains isolating functionEv21 circuit breaker complies to GB14048.2, IEC60947-2 standards, with CCC, CE, CB, TSE certificate approved.
EvM6 Series

Moulded Case Circuit Breaker

List price:0.00

Price:0.00

Product overview EvM6 series of circuit breakers are new upgraded circuit breakers researched and developedby the company combined with the advantages of similar international products and demand ofdomestic and international markets.With insulation voltage up to 1000V, the circuit breaker is applicable for distribution systemsof AC50Hz, rated working voltage 690V and rated working current from 10A to 800A, used todistribute electric power energy, protect circuits and power equipment against overload, shortcircuit, undervoltage and so on, also can be used for infrequent startup of motor and protect it fromoverload, short circuit or undervoltage.It is featured with small size, high breaking, short flashover, etc., is the ideal product for users. Itcan be vertically installed or horizontally installed.EvM6DC series DC moulded-case circuit breaker (hereinafter referred to as circuit breaker) issuitable for DC systems of rated voltage up to and including DC 1000V and rated current 10~800A,used to distribute electric power energy, protect circuits and power equipment against overload,short circuit and so on.The products can be fed with wires from top and bottom, and it is polarity-free.It complies with the standards IEC60947-2, GB14048.2, etc.
Ev33-125 Series

SPD

List price:0.00

Price:0.00

Construction and Feature ◆  Capable of switch electric circuit with load◆  Adaptable to padlock device◆  Contact position indication◆  Capable of quickly releasing stored energy operation ◆  Highlighted of high making and breaking capacity◆  High short-circuit current withstand capacity◆  Used as main switch for household and similar installationTechnical Data ◆ Pole No.: 1, 2, 3, 4◆ Rated current(A): 16, 25, 40, 63, 80, 100, 125◆ Rated voltage: AC 230/400V◆ Rated frequency: 50/60Hz◆ Rated short-circuit making capacity: 6kA◆ Rated withstand current: 2kA within 1sec◆ Electro-mechanical endurance: 10000 cycles◆ Connection capacity: Rigid conductor 35mm2◆ Connection terminal:     Screw terminal     Pillar terminal with clamp◆ Installation:     On symmetrical din rail 35mm     Panel mounting◆ Terminal Connection Height: H=19mm
Ev32-63 Series

RCCB

List price:0.00

Price:0.00

ApplicationEv32-63 is applicable to residual operating current with rated voltage 230V/400V, frequency 50/60HZ and rated current up to 63A. It is used to perform the human electricity shock protection as well as over current protection and short circuit protection for line equipment in building or similar locations, it also can provide the protection against the fire danger caused by the fault current that is resulted from the electric equipment damage.The circuit breaker is applicable for kinds of fields such as the industry, commerce, high rise building, civil building, etc.Technical Data ◆  Pole No.: 1P+N, 2P, 3P, 3P+N, 4P◆  Residual current characteristics: AC, A◆  Rated current (A): 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63◆  Tripping curve: B, C, D◆  Rated short-circuit capacity: 6kA◆  Rated voltage: 230/400V AC◆  Rated frequency: 50/60Hz◆  Rated residual operating current(A): 0.03, 0.1, 0.3◆  Tripping duration: instantaneous≤0.1s◆  Electro-mechanical endurance: 4000 cycles ◆  Terminal Connection Height: H1=19mm, H2=23m
Ev32-32 Series

RCCB

List price:0.00

Price:0.00

Construction and Feature ◆ Elegant appearance; cover and handle in arc shape make comfortable operation.◆ Contact position indicating window◆ Transparent cover designed to carry label.  ◆ In case of overload to protected circuit, RCBO handle trips and stays at central position, which enables     a quick solution to the faulty line. The handle cannot stay in such position when operated manually.◆ RCBO handle can be locked either at "ON" position or at "OFF" position to prevent unwanted     operation of the product.◆ Provides protection against earth fault/leakage current, short-circuit and overload◆ High short-circuit capacity◆ Provides complementary protection against direct contact by human body.◆ Effectively protects electric equipment against insulating failure◆ Contact position indication◆ Provides protection against over-voltage
Ev32-32N Series

RCCB

List price:0.00

Price:0.00

Construction and Feature ◆ Operating machanism adopt double contact with DPN form, N pole opening first, then breaking.◆ Leakage protecion adopt electronic type integrated circuit, Contact ON/OFF state display.◆ Trigger has middle-position function and a clamshell to put tags in and characteristic stripes on both sides.◆ Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.
Ev32-40 Series

RCCB

List price:0.00

Price:0.00

Construction and Feature ◆Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation◆Provides complementary protection against direct contact by human body◆Effectively protects electric equipment against insulating failure◆Provides comprehensive protection to household and commercial distribution systemsTechnical Data ◆ Type: Electro-magnetic type◆ Residual current characteristics:  AC  A◆ Pole No.: 1P+N◆ Tripping curve: B, C, D◆ Rated short-circuit capacity: 10kA◆ Rated current (A): 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40◆ Rated voltage: 240V AC◆ Rated frequency: 50/60Hz◆ Rated residual operating current(mA): 0.03, 0.1, 0.3◆ Tripping duration: Instantaneous ≤0.1s◆ Electro-mechanical endurance: 4000 cycles◆ Connection terminal: pillar terminal with clamp◆ Connection capacity:      Rigid conductor 16mm2     Terminal connection height: 21.5mm◆ Installation:    On symmetrical DIN rail 35mm    Panel mounting    Wiring Diagram
Ev31-125 & Ev51-63 Series

RCCB

List price:0.00

Price:0.00

Construction and Feature ◆ Elegant appearance; cover and handle in arc shape make comfortable operation.◆ Contact position indicating window◆ Transparent cover designed to carry label.  ◆ In case of overload to protect circuit, RCCB handle trips and stays at central position, which enables     a quick solution to the faulty line. The handle cannot stay in such position when operated manually.◆ Provides protection against earth fault/leakage current and function of isolation.◆ High short-circuit current withstand capacity ◆ Applicable to terminal and pin/fork type busbar connection◆ Equipped with finger protected connection terminals◆ Fire resistant plastic parts endures abnormal heating and strong impact◆ Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity. ◆ Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
