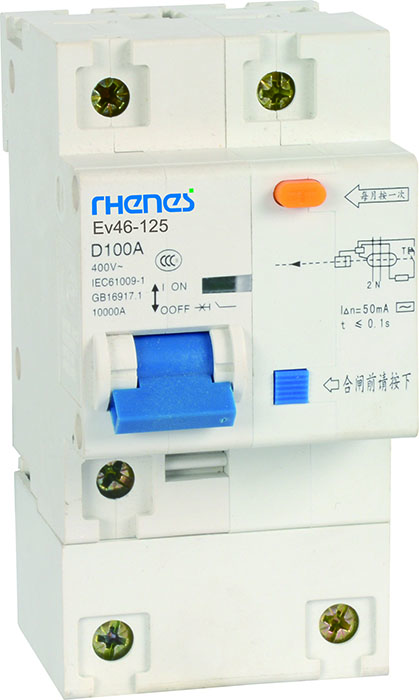

Main Technical Parameter
| Type |
Ev46-125 |
| Pole |
1P+N 2P |
3P 3P+N 4P |
| Rated current (A) |
63 80 100 |
| Rated voltage(V) |
230 |
400 |
| Rated short circuit breaking capacity Icn(kA) |
6 |
| Rated residual making/breaking capacity IΔm(A) |
2000 |
| Rated residual action current IΔn(A) |
0.03 0.1 0.3 |
| Rated residual non – action current IΔno(A) |
0.5IΔn |
| Over voltage protection grade |
280V±5% |
Applicable Conducting Wire
| Rated current(A) |
63 |
80 |
100 |
| Nominal cross section of wire mm² |
16 |
25 |
35 |
Residual Current Breaking Time
| In (A) |
IΔn (A) |
IΔn |
2IΔn |
5IΔn |
5102050100200500a (A) |
IΔtb |
| 6 – 63 |
0.03 0.05 0.1 0.3 |
0.1 |
0.06 |
0.04 |
0.04 |
0.04 |
The Over-current Protection Property
| Ambient temperature |
Initial status |
Test current |
Test time |
Expected result |
Note |
| 40±2°C |
Cold position |
1.05In (In≤63A) |
t≤1h |
Non – release |
– |
| Cold position |
1.05In (In>63A) |
t≤2h |
Non – release |
– |
| Carried out immediately after previous test |
1.30In (In≤63A) |
t<1h |
Release |
Current smoothly rises to specified value within 5s |
| Carried out immediately after previous test |
1.30In (In>63A) |
t<2h |
Release |
Current smoothly rises to specified value within 5s |
| -5~+40°C |
Cold position |
8.00In |
t≤0.2s |
Non – release |
– |
| Cold position |
12.00In |
t<0.2s |
Non – release |
– |

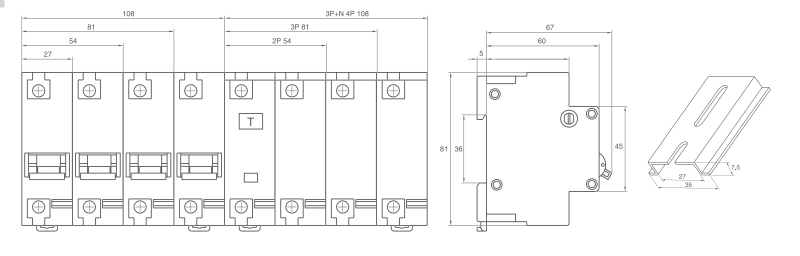

Dimension
