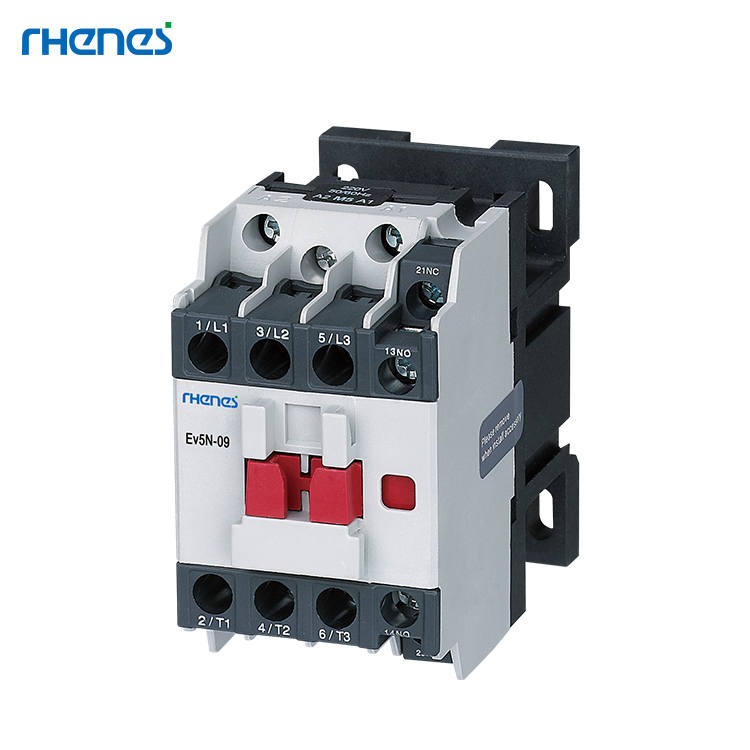

Ev5N

Ev5N

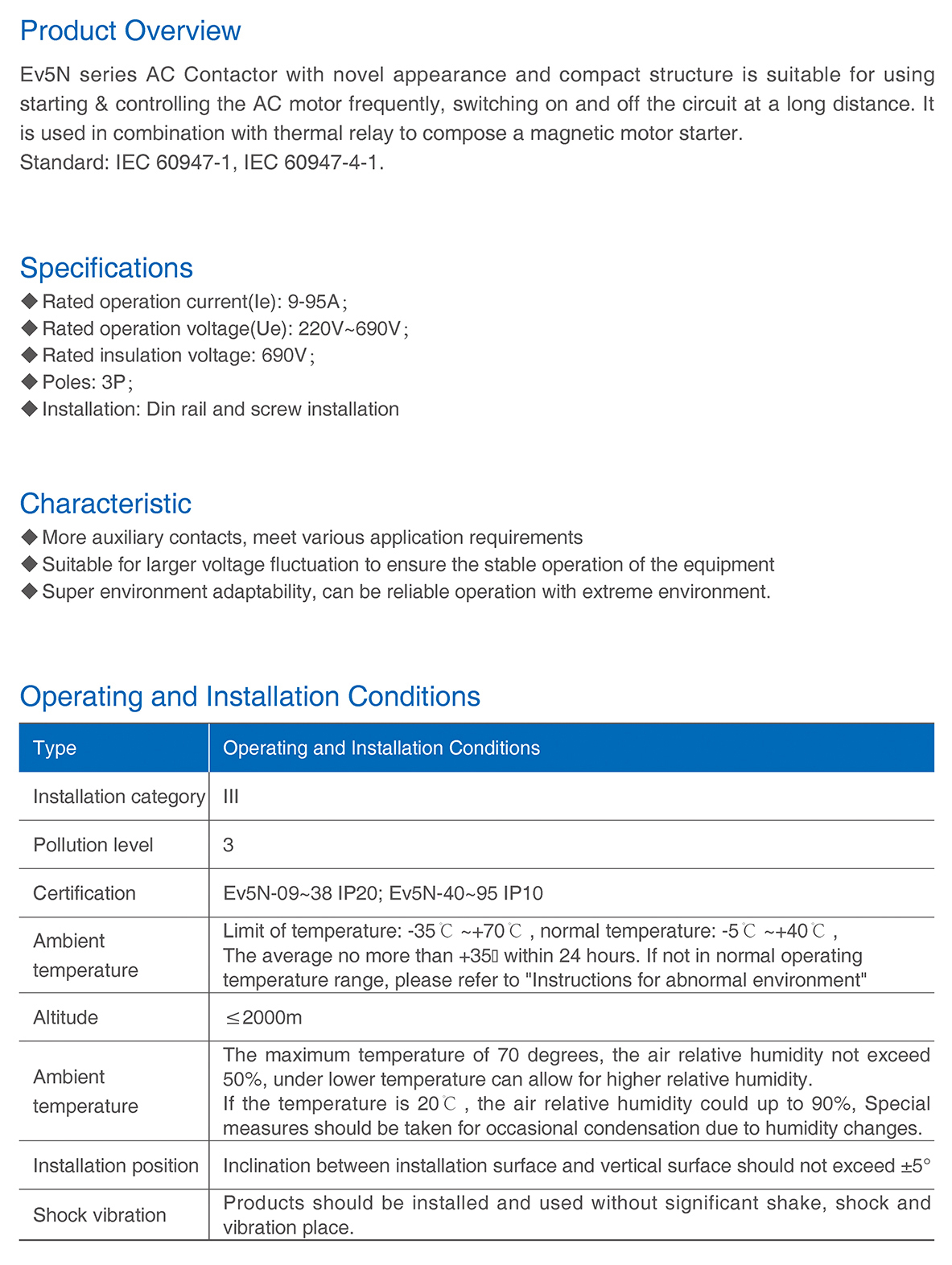

Product Overview

Ev5N series AC Contactor with novel appearance and compact structure is suitable for using starting & controlling the AC motor frequently, switching on and off the circuit at a long distance. It is used in combination with thermal relay to compose a magnetic motor starter.

Standard: IEC 60947-1, IEC 60947-4-1


Specifications

· Rated operation current(Ie): 9-95A;

· Rated operation voltage(Ue): 220V~690V;

· Rated insulation voltage: 690V;

· Poles: 3P;

· Installation: Din rail and screw installation


0.00
0.00

Product Description

Product Overview

Ev5N series AC Contactor with novel appearance and compact structure is suitable for using starting & controlling the AC motor frequently, switching on and off the circuit at a long distance. It is used in combination with thermal relay to compose a magnetic motor starter.

Standard: IEC 60947-1, IEC 60947-4-1


Specifications

· Rated operation current(Ie): 9-95A;

· Rated operation voltage(Ue): 220V~690V;

· Rated insulation voltage: 690V;

· Poles: 3P;

· Installation: Din rail and screw installation
