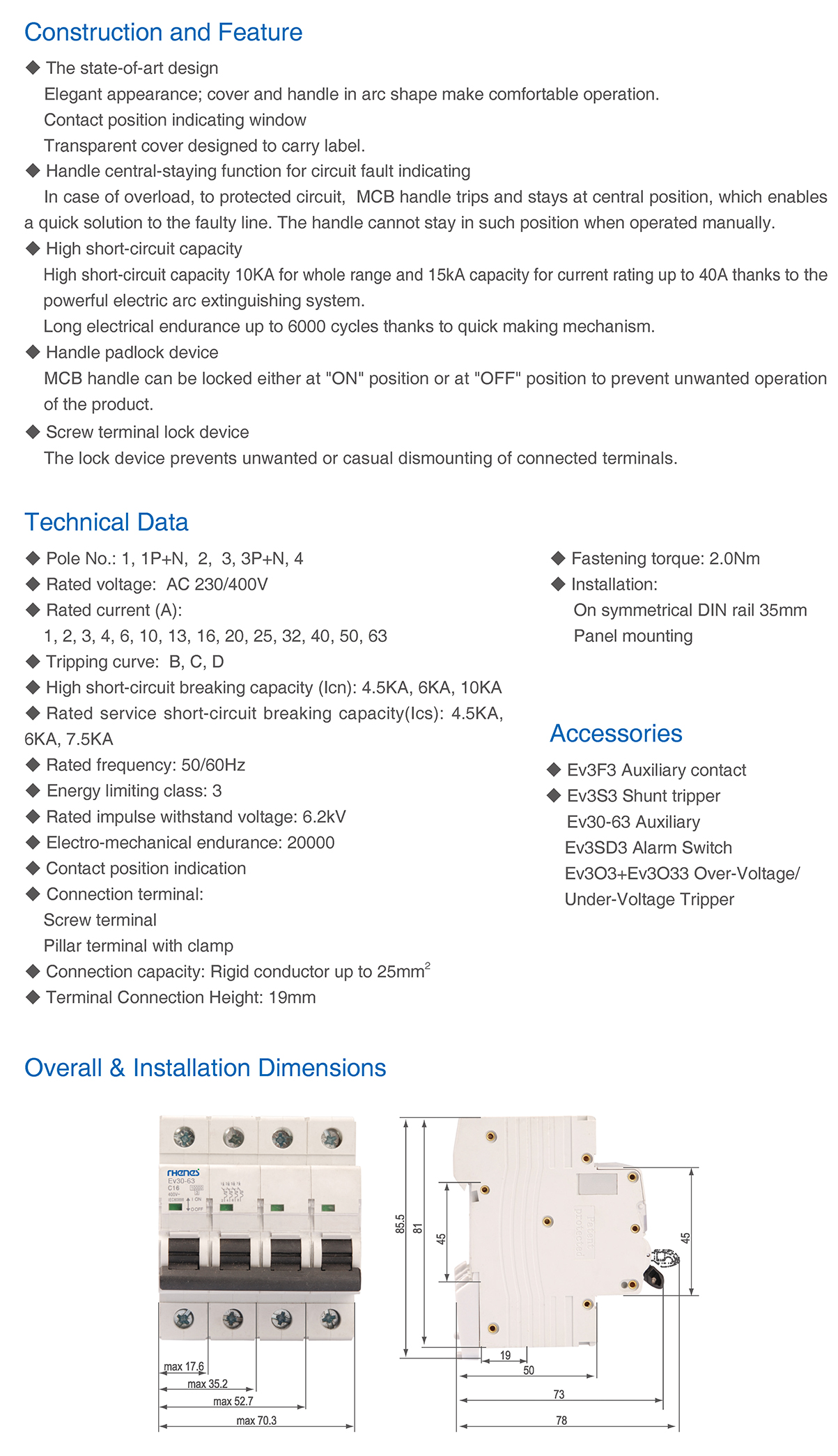

◆The state-of-art design

Elegant appearance; cover and handle in arc shape make comfortable operation.

Contact position indicating window

Transparent cover designed to carry label.

◆Handle central-staying function for circuit fault indicating

In case of overload, to protected circuit, MCB handle trips and stays at central position, which enables

a quick solution to the faulty line. The handle cannot stay in such position when operated manually.

◆High short-circuit capacity

High short-circuit capacity 10KA for whole range and 15kA capacity for current rating up to 40A thanks to the

powerful electric arc extinguishing system.

Long electrical endurance up to 6000 cycles thanks to quick making mechanism.

◆Handle padlock device

MCB handle can be locked either at "ON" position or at "OFF" position to prevent unwanted operation

of the product.

◆Screw terminal lock device

The lock device prevents unwanted or casual dismounting of connected terminals.
