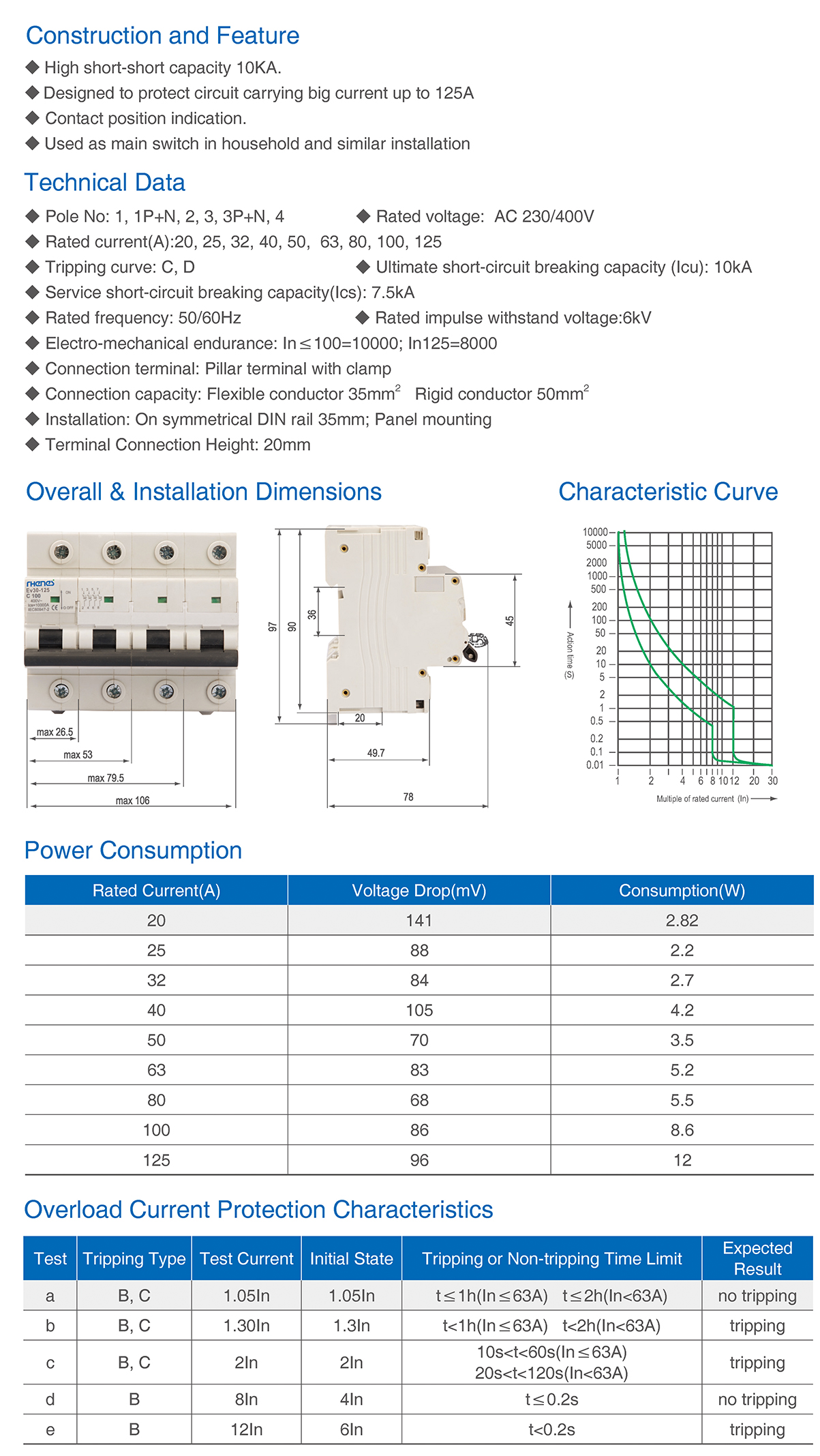

Construction and Feature

◆ High short-short capacity 10KA.

◆Designed to protect circuit carrying big current up to 125A

◆Contact position indication.

◆ Used as main switch in household and similar installation

Technical Data

◆Pole No: 1, 1P+N, 2, 3, 3P+N, 4
◆Rated voltage:  AC 230/400V

◆Rated current(A):20, 25, 32, 40, 50,  63, 80, 100, 125

◆Tripping curve: C, D                                  ◆Ultimate short-circuit breaking capacity (Icu): 10kA

◆Service short-circuit breaking capacity(Ics): 7.5kA

◆Rated frequency: 50/60Hz                        ◆Rated impulse withstand voltage:6kV

◆Electro-mechanical endurance: In≤100=10000; In125=8000

◆Connection terminal: Pillar terminal with clamp

◆Connection capacity: Flexible conductor 35mm2   Rigid conductor 50mm2

◆Installation: On symmetrical DIN rail 35mm; Panel mounting

◆Terminal Connection Height: 20mm
