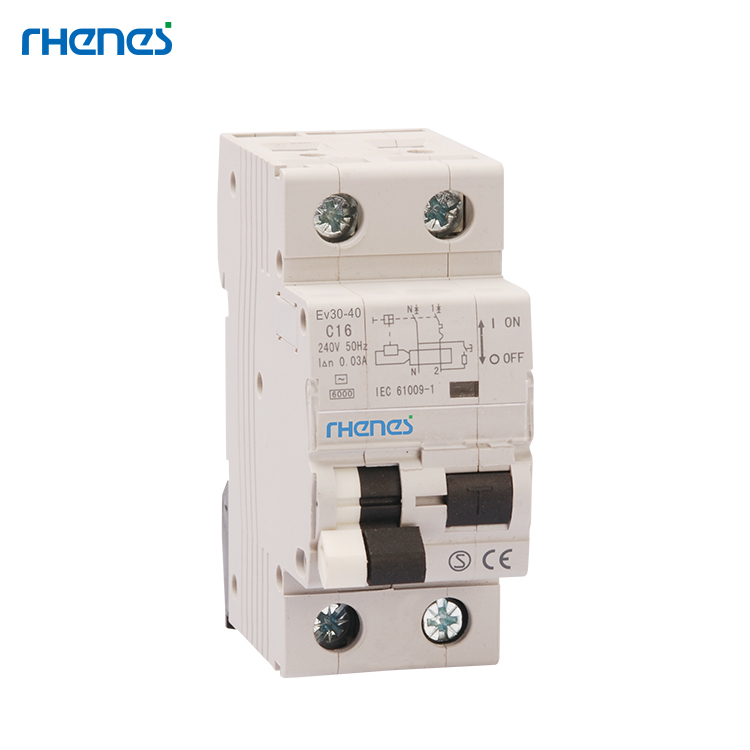

Ev32-40 Series

Ev32-40 Series

Construction and Feature

◆Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation

◆Provides complementary protection against direct contact by human body

◆Effectively protects electric equipment against insulating failure

◆Provides comprehensive protection to household and commercial distribution systems

Technical Data

◆ Type: Electro-magnetic type

◆ Residual current characteristics:  AC  A

◆ Pole No.: 1P+N

◆ Tripping curve: B, C, D

◆ Rated short-circuit capacity: 10kA

◆ Rated current (A): 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40

◆ Rated voltage: 240V AC

◆ Rated frequency: 50/60Hz

◆ Rated residual operating current(mA): 0.03, 0.1, 0.3

◆ Tripping duration: Instantaneous ≤0.1s

◆ Electro-mechanical endurance: 4000 cycles

◆ Connection terminal: pillar terminal with clamp

◆ Connection capacity:

      Rigid conductor 16mm2

     Terminal connection height: 21.5mm

◆ Installation:

    On symmetrical DIN rail 35mm

    Panel mounting

    Wiring Diagram


0.00
0.00

Product Description

Construction and Feature

◆Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation

◆Provides complementary protection against direct contact by human body

◆Effectively protects electric equipment against insulating failure

◆Provides comprehensive protection to household and commercial distribution systems

Technical Data

◆ Type: Electro-magnetic type

◆ Residual current characteristics:  AC  A

◆ Pole No.: 1P+N

◆ Tripping curve: B, C, D

◆ Rated short-circuit capacity: 10kA

◆ Rated current (A): 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40

◆ Rated voltage: 240V AC

◆ Rated frequency: 50/60Hz

◆ Rated residual operating current(mA): 0.03, 0.1, 0.3

◆ Tripping duration: Instantaneous ≤0.1s

◆ Electro-mechanical endurance: 4000 cycles

◆ Connection terminal: pillar terminal with clamp

◆ Connection capacity:

      Rigid conductor 16mm2

     Terminal connection height: 21.5mm

◆ Installation:

    On symmetrical DIN rail 35mm

    Panel mounting

    Wiring Diagram
