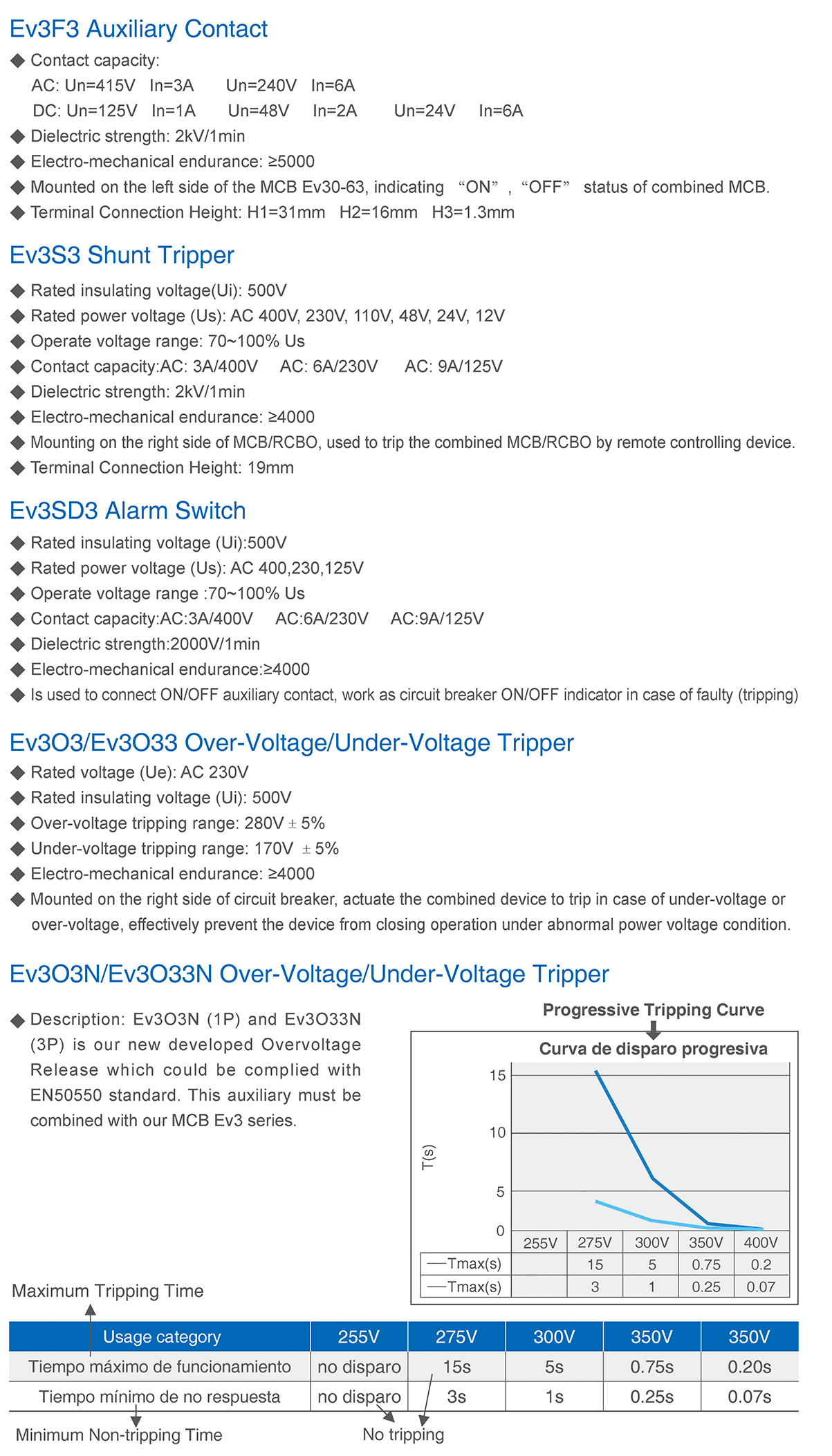

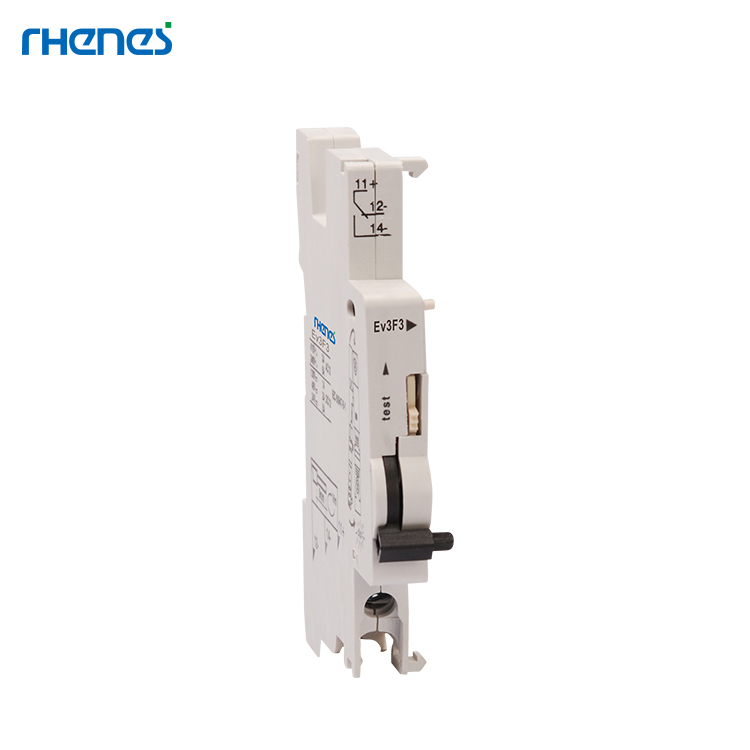

Ev3F3 Auxiliary Contact
◆ Contact capacity:

     AC: Un=415V   In=3A       Un=240V   In=6A

     DC: Un=125V   In=1A       Un=48V     In=2A        Un=24V     In=6A

◆ Dielectric strength: 2kV/1min

◆ Electro-mechanical endurance: ≥5000

◆ Mounted on the left side of the MCB Ev30-63, indicating “ON”,“OFF” status of combined MCB.

◆ Terminal Connection Height: H1=31mm   H2=16mm   H3=1.3mm
