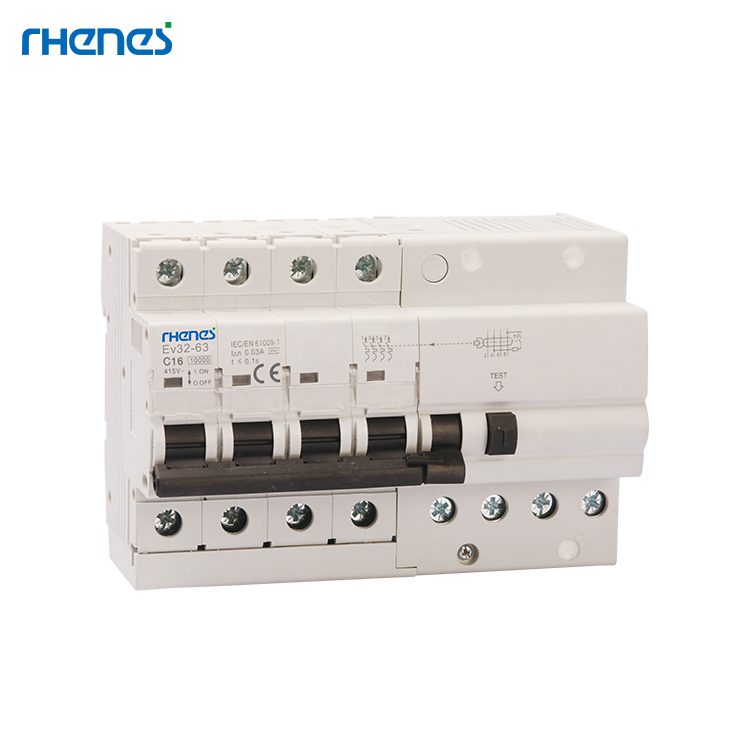

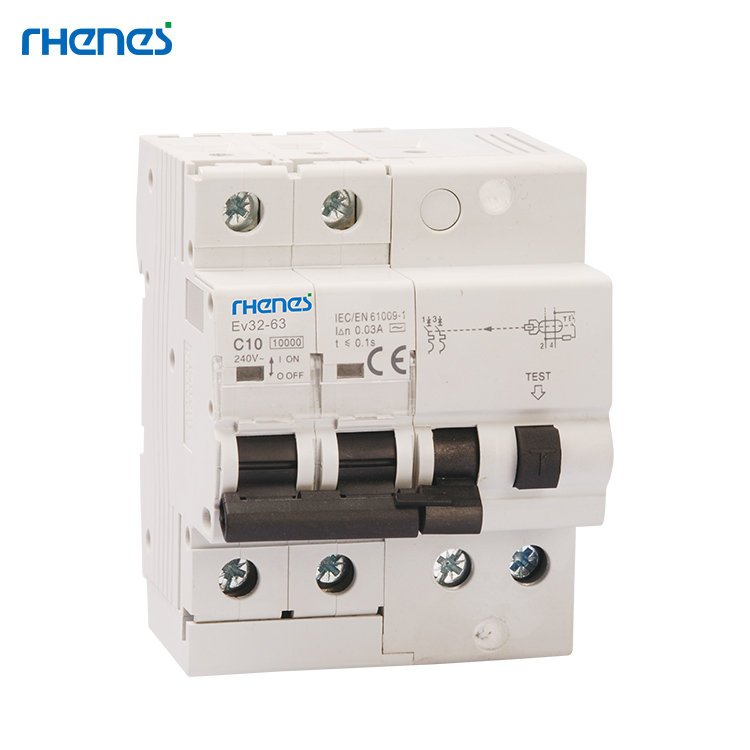

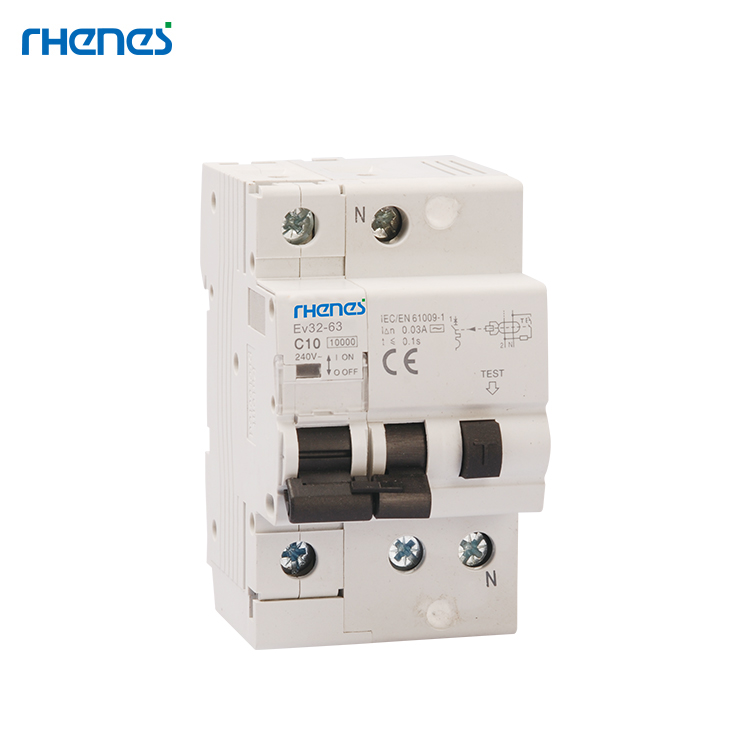

Ev32-63 Series

Ev32-63 Series

Application

Ev32-63 is applicable to residual operating current with rated voltage 230V/400V, frequency 50/60HZ and rated current up to 63A. It is used to perform the human electricity shock protection as well as over current protection and short circuit protection for line equipment in building or similar locations, it also can provide the protection against the fire danger caused by the fault current that is resulted from the electric equipment damage.

The circuit breaker is applicable for kinds of fields such as the industry, commerce, high rise building, civil building, etc.

Technical Data

◆  Pole No.: 1P+N, 2P, 3P, 3P+N, 4P

◆  Residual current characteristics: AC, A

◆  Rated current (A): 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63

◆  Tripping curve: B, C, D

◆  Rated short-circuit capacity: 6kA

◆  Rated voltage: 230/400V AC

◆  Rated frequency: 50/60Hz

◆  Rated residual operating current(A): 0.03, 0.1, 0.3

◆  Tripping duration: instantaneous≤0.1s

◆  Electro-mechanical endurance: 4000 cycles

◆  Terminal Connection Height: H1=19mm, H2=23m

0.00
0.00

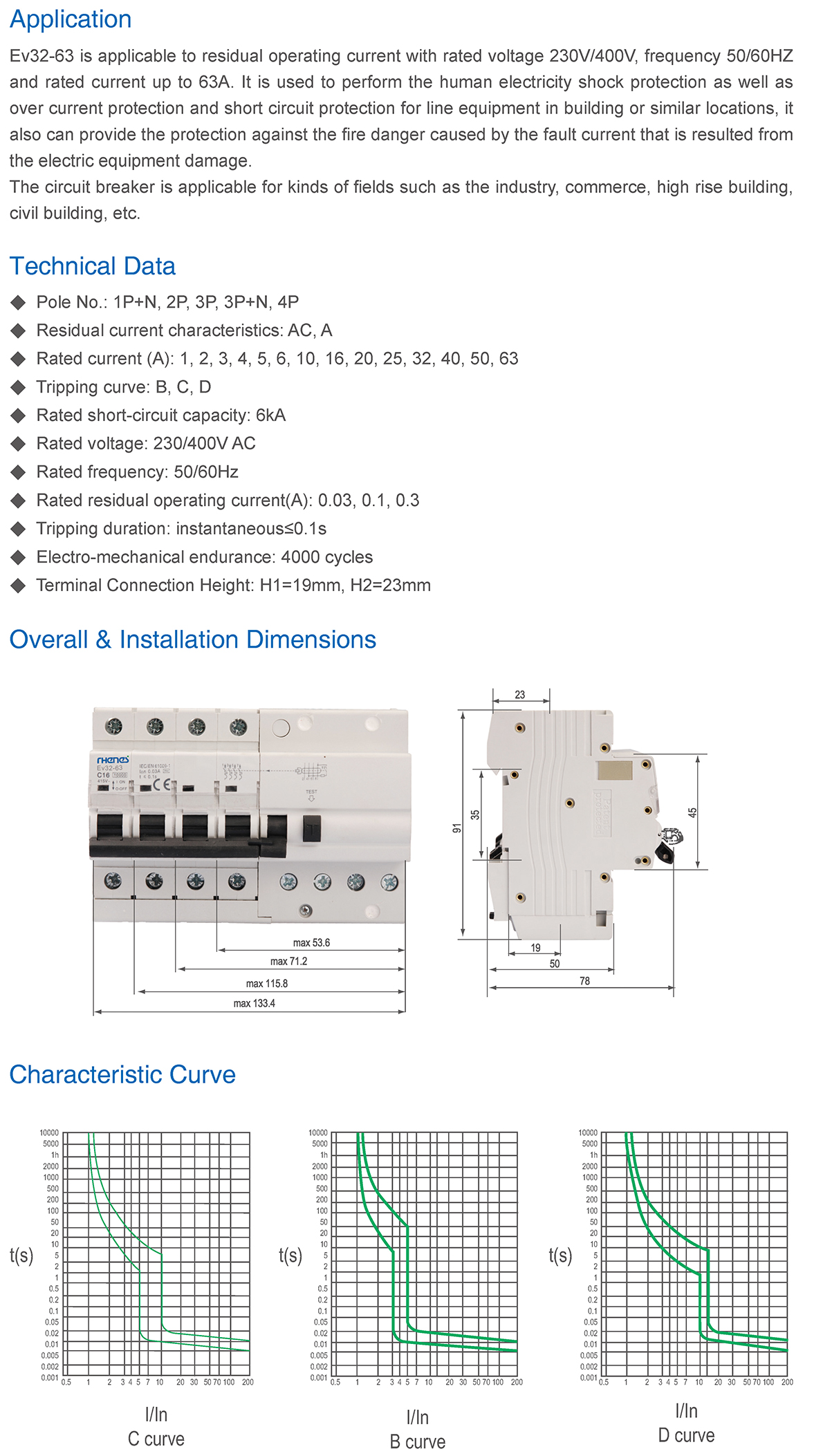

Product Description

Application

Ev32-63 is applicable to residual operating current with rated voltage 230V/400V, frequency 50/60HZ and rated current up to 63A. It is used to perform the human electricity shock protection as well as over current protection and short circuit protection for line equipment in building or similar locations, it also can provide the protection against the fire danger caused by the fault current that is resulted from the electric equipment damage.

The circuit breaker is applicable for kinds of fields such as the industry, commerce, high rise building, civil building, etc.

Technical Data

◆  Pole No.: 1P+N, 2P, 3P, 3P+N, 4P

◆  Residual current characteristics: AC, A

◆  Rated current (A): 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63

◆  Tripping curve: B, C, D

◆  Rated short-circuit capacity: 6kA

◆  Rated voltage: 230/400V AC

◆  Rated frequency: 50/60Hz

◆  Rated residual operating current(A): 0.03, 0.1, 0.3

◆  Tripping duration: instantaneous≤0.1s

◆  Electro-mechanical endurance: 4000 cycles

◆  Terminal Connection Height: H1=19mm, H2=23m
