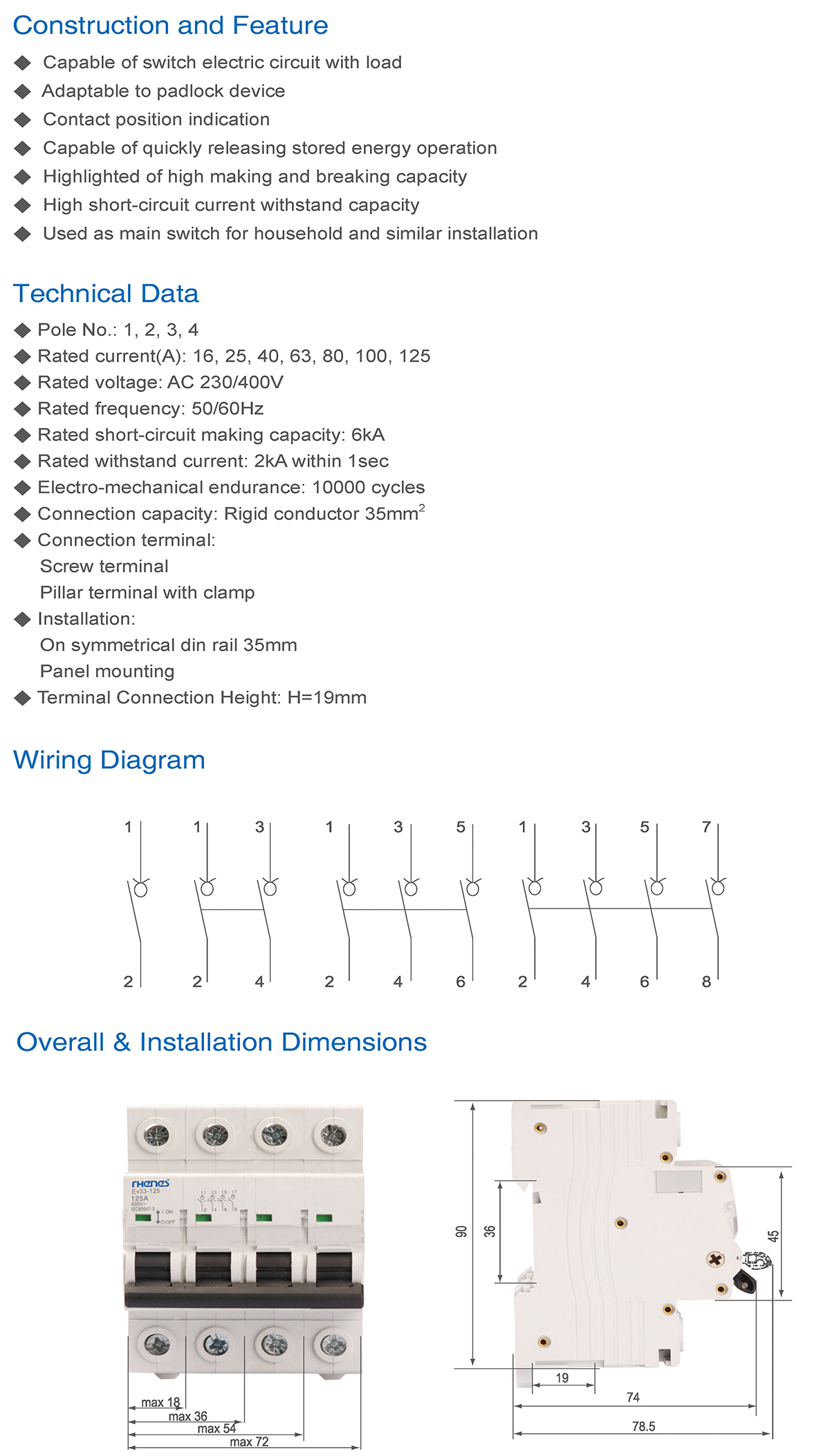

Construction and Feature

◆  Capable of switch electric circuit with load

◆  Adaptable to padlock device

◆  Contact position indication

◆  Capable of quickly releasing stored energy operation

◆  Highlighted of high making and breaking capacity

◆  High short-circuit current withstand capacity

◆  Used as main switch for household and similar installation

Technical Data

◆ Pole No.: 1, 2, 3, 4

◆ Rated current(A): 16, 25, 40, 63, 80, 100, 125

◆ Rated voltage: AC 230/400V

◆ Rated frequency: 50/60Hz

◆ Rated short-circuit making capacity: 6kA

◆ Rated withstand current: 2kA within 1sec

◆ Electro-mechanical endurance: 10000 cycles

◆ Connection capacity: Rigid conductor 35mm2

◆ Connection terminal:

     Screw terminal

     Pillar terminal with clamp

◆ Installation:

     On symmetrical din rail 35mm

     Panel mounting

◆ Terminal Connection Height: H=19mm
